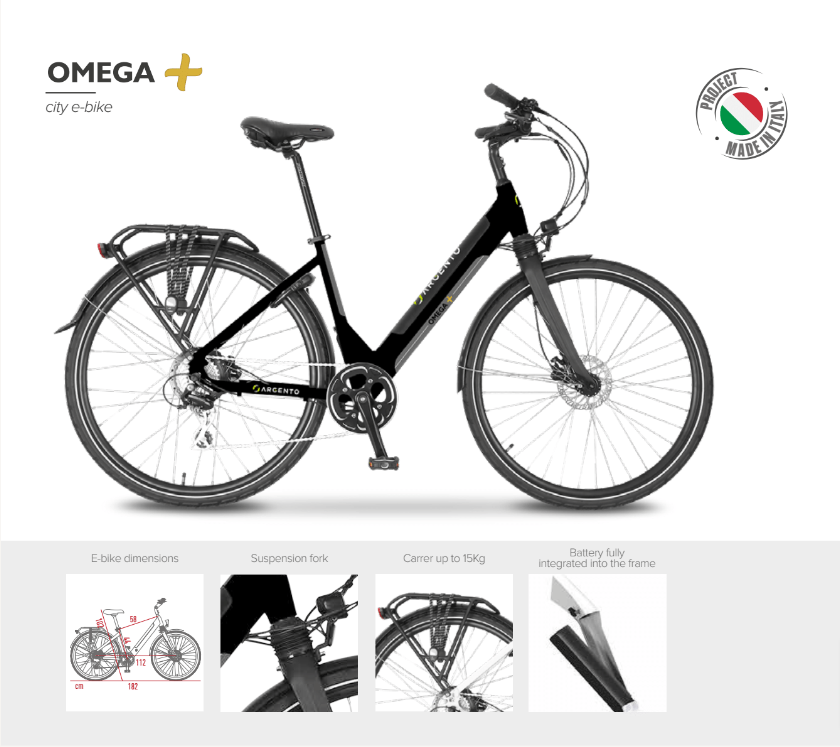

Omega + is a pedal-assisted bicycle for the city.
The 28 '' and 1.75 '' wide (4.45 cm) KENDA wheel gives the vehicle stability and agility at the same time. The battery integrated into the frame provides the vehicle with clean and elegant lines, making it comfortable, performing and reflecting the indispensable Italian style. The ROYAL padded saddle, an Italian brand with internal suspension in the column, gives the seat the maximum desirable comfort.
The waterproof LCD display will allow you to view the main usage information directly on display: pedal assistance configurable at 3/5/9 levels, battery indicator, ON / OFF lights, odometer with related functions to check the main performance of the e-bike quickly and safely, without distracting you from driving.
The XOFO 36V 250W brushless rear motor and the 36v 10.4Ah 375Wh SAMSUNG battery will allow you to travel effortlessly up to 70km, reaching a maximum speed of 25km / h. The SHIMANO 7-speed gearbox and TEKTRO braking system will allow you to manage the use of the e-bike in the best possible way and total safety. Finally, the eco-leather grips, the aluminium rims and seat post, the rear rack, the aluminium chain guard and the full black spokes give the bicycle a unique urban design and style.
Download the user manual here.
FEATURES
WHEELS
28-inch KENDA wheels that give the e-bike added stability if you're on an uneven road
DISPLAY
A waterproof LCD display allows you to view all essential information you might need to ride your e-bike safely and efficiently.
MOTOR
A XOFO branded 250W rear motor means you can reach speeds of up to 25km/h. Combined with the Samsung battery means you can travel for up to 70km on one charge.
ITALIAN DESIGN
The integrated battery within the sleek aluminium frame, a useful rear rack and eco-leather grips make for an elegant, urban e-bike.
SPECIFICATIONS
WHEELS
28 "X 1.75" brand KENDA model K1088
RIM
black aluminium, double shoulder, black spokes
BRAKES
mechanical front and rear disc brake, brand: TEKTRO, model: Aries, WuXing brakes lever, motor power cut off sensor
SHIFTER
Shimano Tourney 7 speed
FRONT FORK
aluminium brand ZOOM, with a single shock absorber
CRANKSET
brand PROWHEEL model POR 48T
PEDALS
aluminium brand VP model VP-608
FRAME
aluminium with an integrated padlock for the rear wheel
MAX SPEED
25 km/h
SEAT
brand SELLE ROYAL, model Freeway, high-density sponge padding
SEAT TUBE
aluminium, with internal suspension
HANDLEBAR
aluminium, brand ZOOM, model city
GRIPS
brand VELO, in breathable, ergonomic, non-slip and waterproof silicone
LIGHTS
LED lights, brand SPANNINGA, front model: HL 1900, rear model: RL1900, operated from the display DISPLAY brand APT, 500S LCD display, IP67 waterproof, info on display: 5 assistance levels, battery indicator, ON / OFF lights, odometer with attached functions
MOTOR brand: XOFO, 36V 250W, rear FENDER included, city model, plastic
KICKSTAND rear, side model
REAR RACK included max load 15Kg, black
MAX LOAD 100kg
BATTERY SAMSUNG 36V 10,4Ah 375Wh CHARGER 42V 2A CHARGING TIME 4/6 hours AUTONOMY from 40 to 70km, this data depends on the level of assistance used, the weight of the cyclist, muscle power applied when pedalling, tire pressure, road slope, number of stops and restarts BATTERY WEIGHT 2,46Kg NET WEIGHT 22,54Kg GROSS WEIGHT 25Kg CARTON SIZE 147,5 x 26 x 90cm
